Hettich Intermat 9930 Corner Cabinet Hinges and Mounts 50-65 Degree TB45
Prix
£14.49
inc. T.V.A.
Impossible de charger la disponibilité de la réception
Pourquoi ne pas partager ce produit sur vos réseaux sociaux préférés :

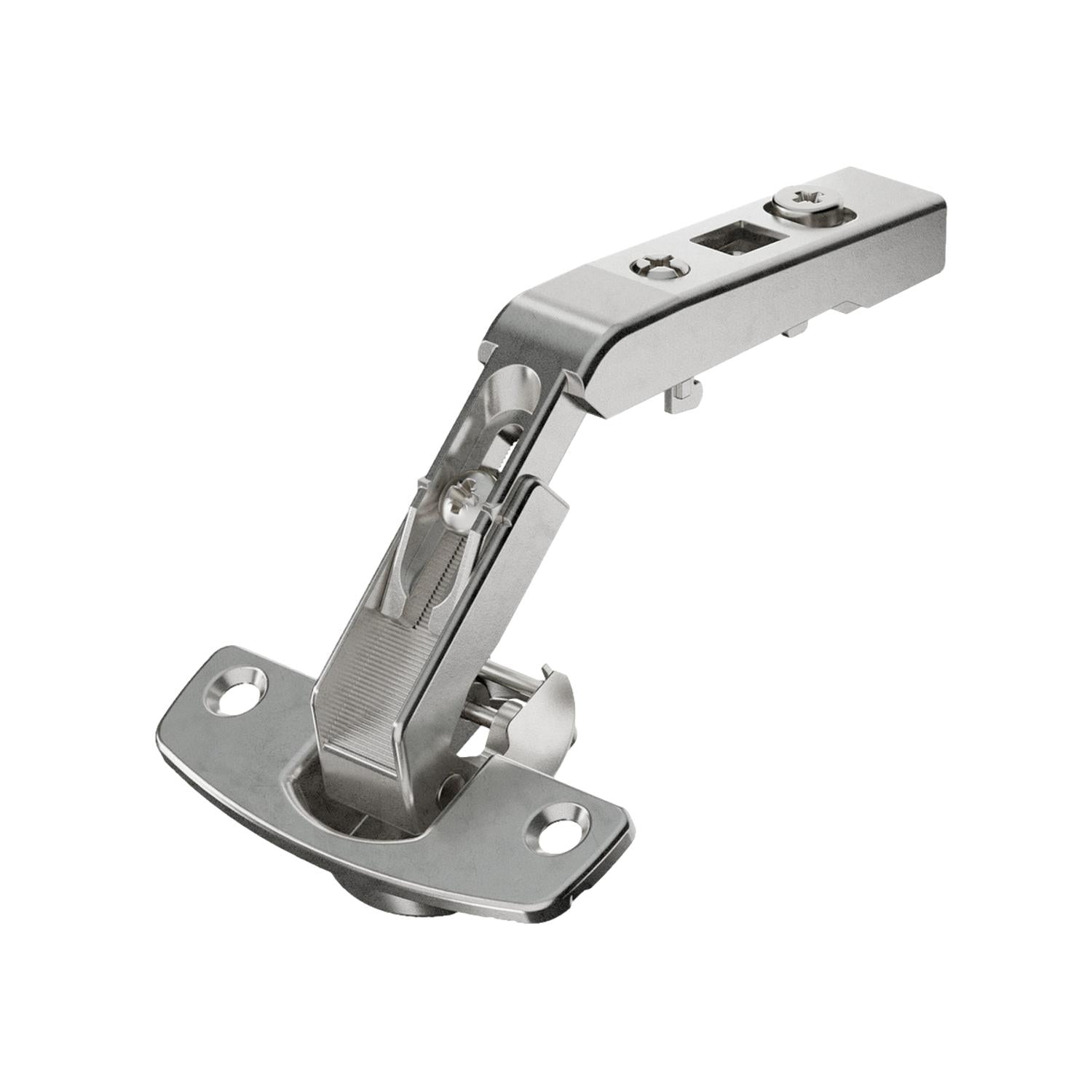

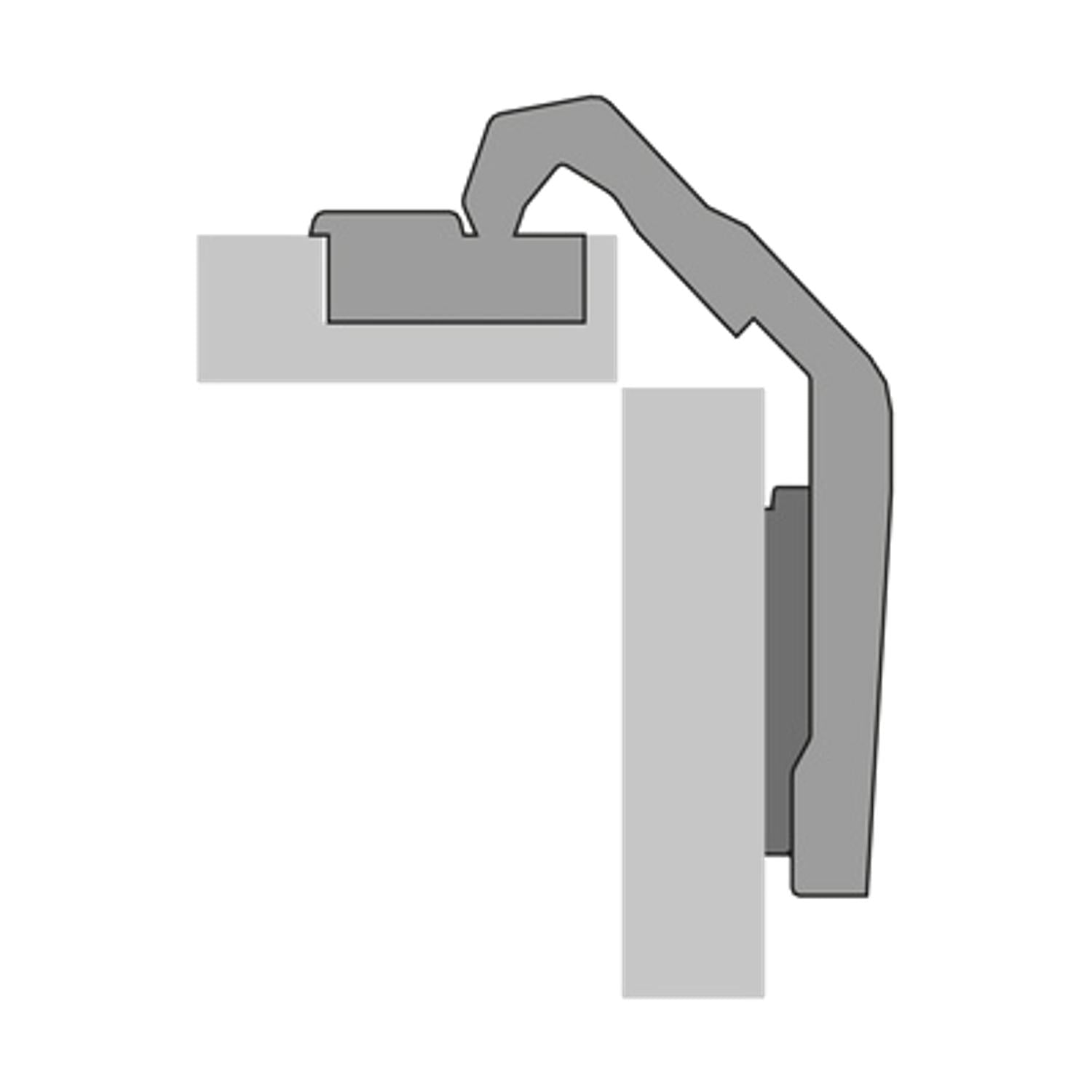

Intermat overlay hinges for corner cabinet folding doors with 50° / 65° opening angle. Pack of 2 hinges and mounting plates.
Please note these hinges following the TB45 drilling pattern with 45mm hole centres.
Please note these hinges following the TB45 drilling pattern with 45mm hole centres.
- Without self closing feature (Intermat 9930)
- For door thickness 15 - 21 mm

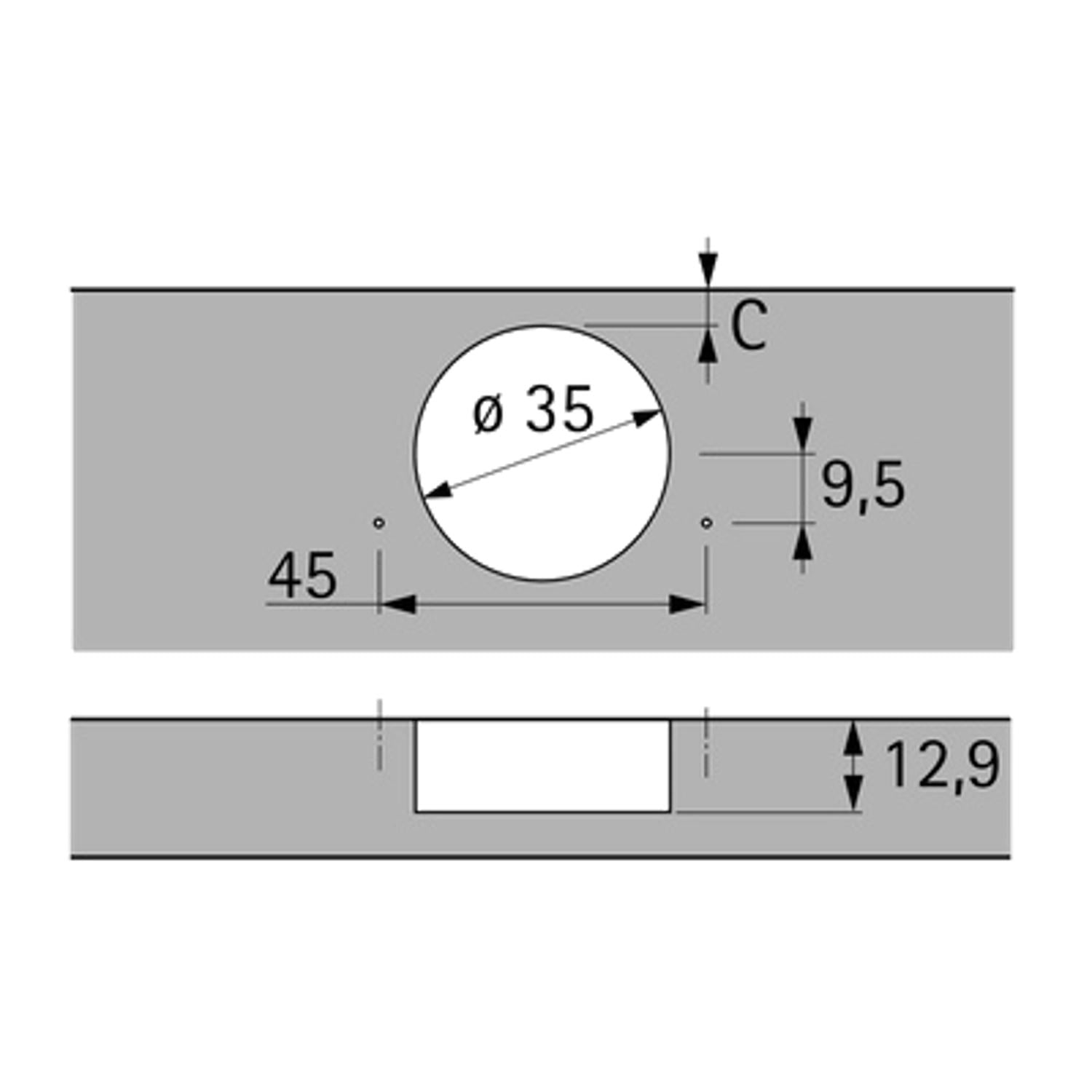

- Drilling pattern TB45 x 5,5 mm
- Cup depth 10.5 mm

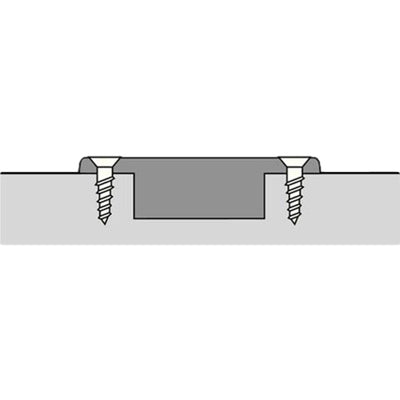

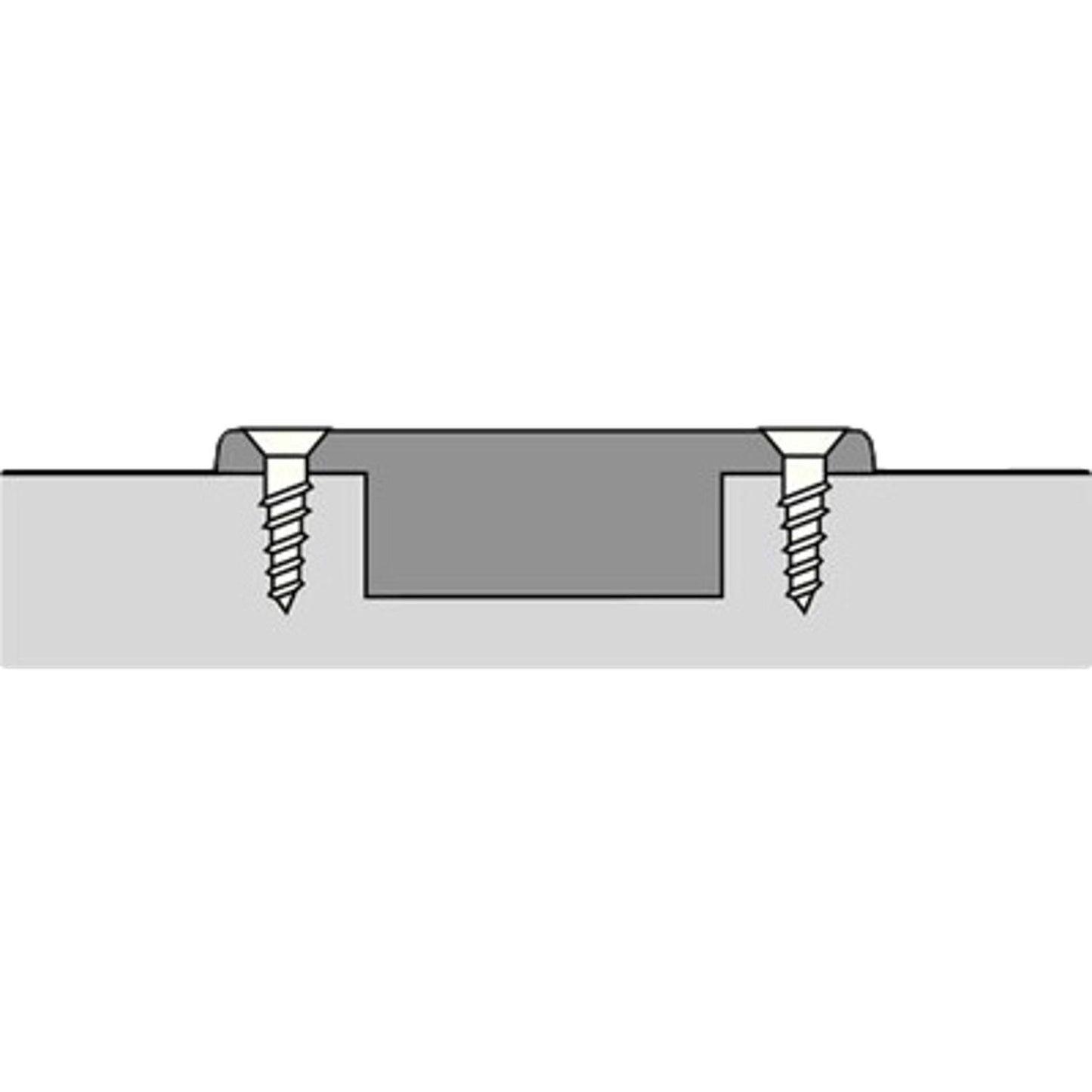

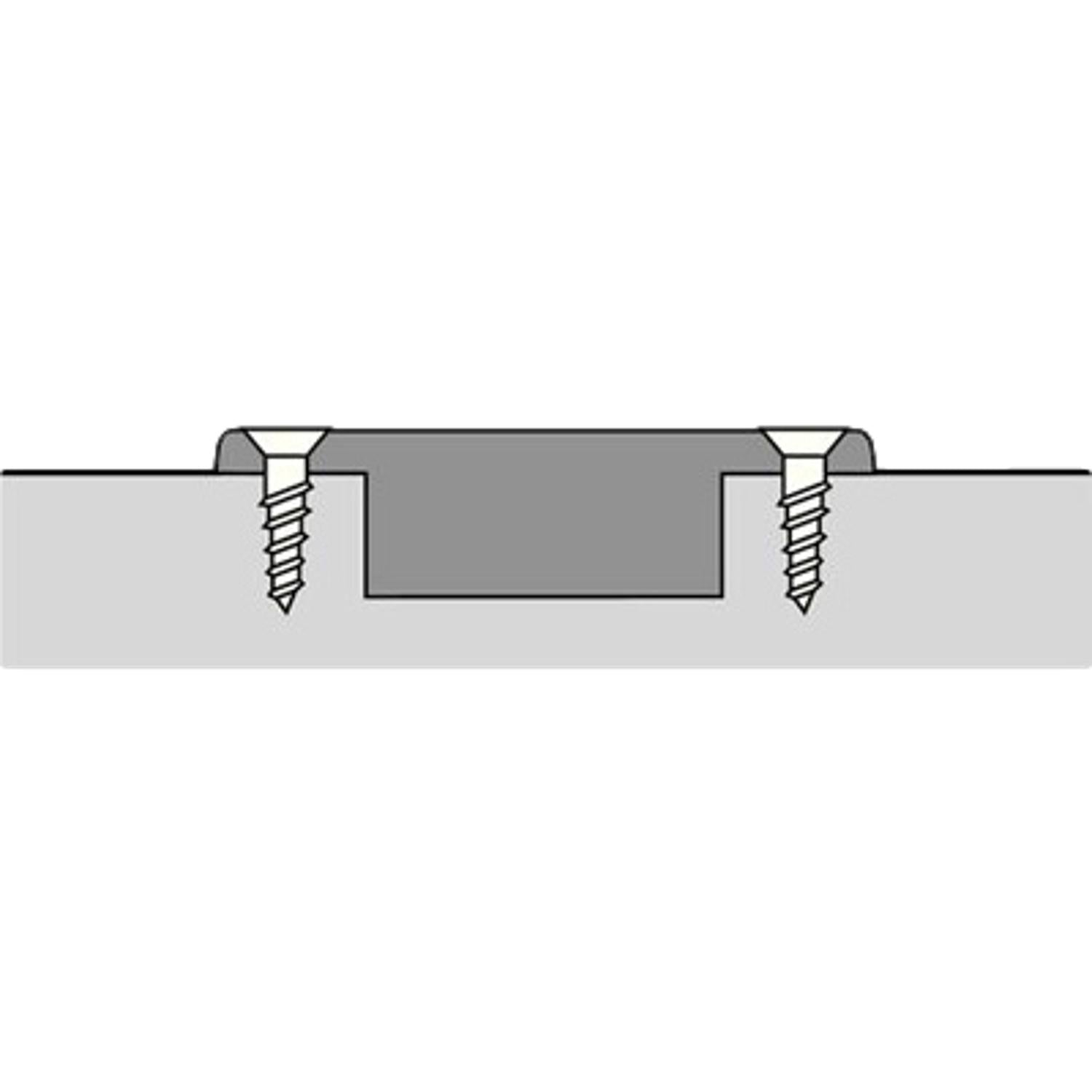

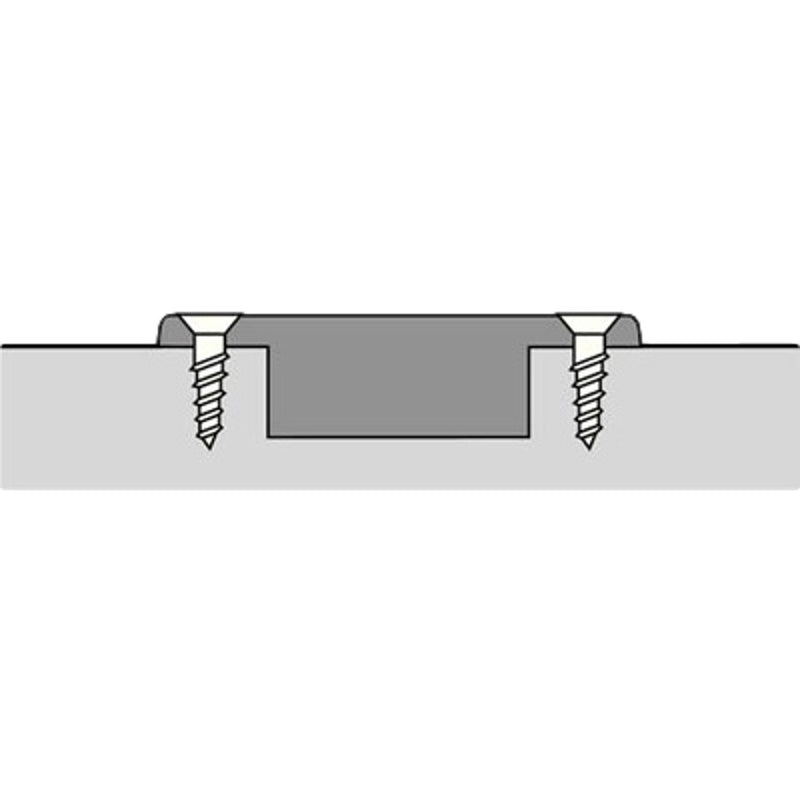

- Installation for screwing on
- Integrated diagonal adjustment +9.5 mm / -9.5 mm

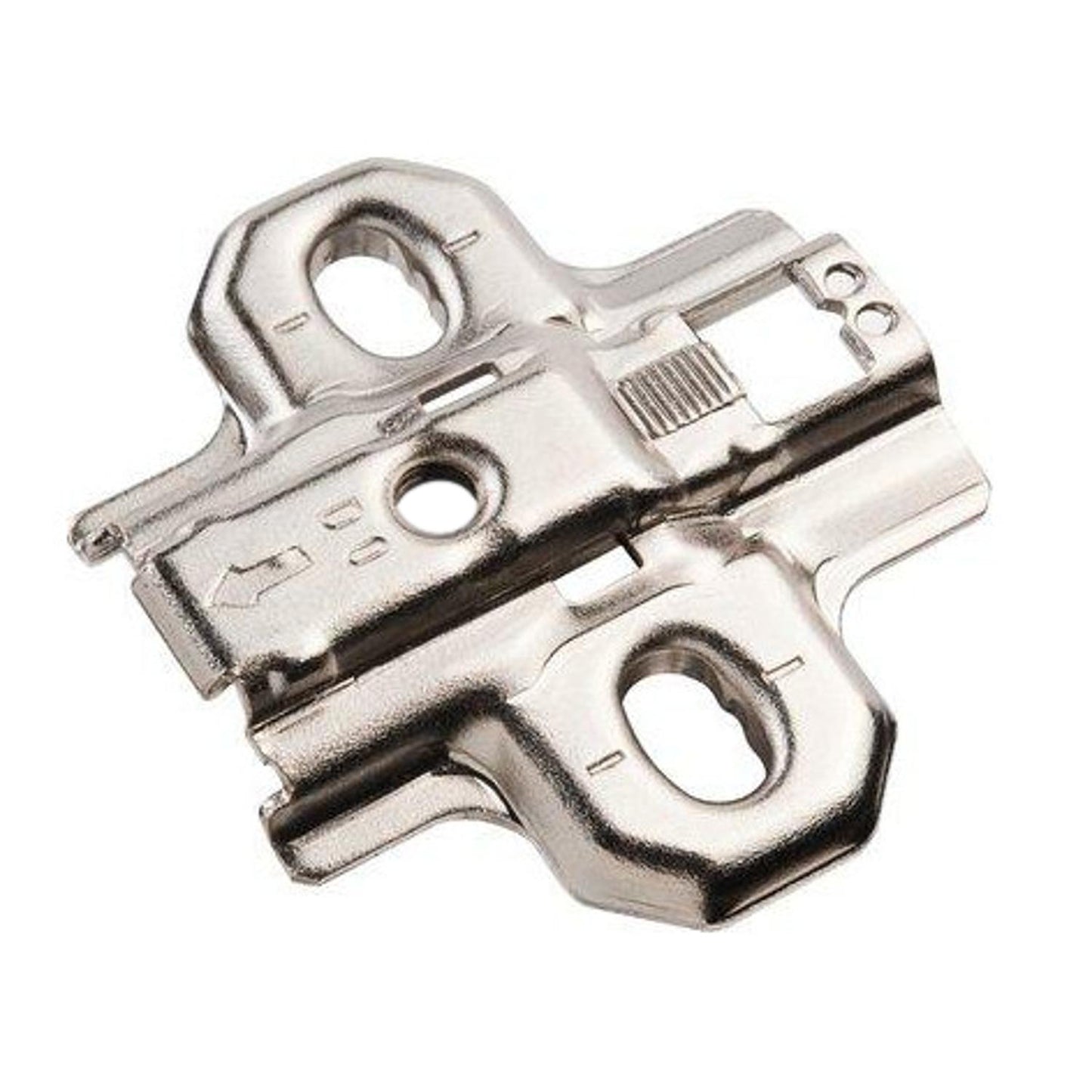

- Height adjustment at mounting plate
- steel / die-cast zinc nickel plated
- Pack of 2 hinges and mounting plates
