Hettich Intermat 9936 W45 95˚ Hinge & Plate 48096 TH52
Regular price
£8.99
inc. VAT
Couldn't load pickup availability
Why not share this product on your favourite social networks:
Hettich Intermat 9936 W45 Hinge 48096 with 0mm mounting plate 9075005.
Price is for one hinge and plate.
Price is for one hinge and plate.

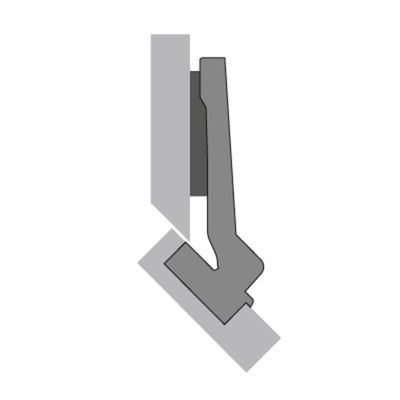

- Intermat angle hinge W45
- With self closing feature (Intermat 9936 W45)
- Quality classification under EN 15570, Level 2
- Opening angle 95°
- For door thickness 14 - 32 mm
- Door mounting option overlay (B 0)
- TH - drilling pattern 52 x 5.5 mm
- Cup depth 10.5 mm
- Installation for screwing on
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +2 mm / -2 mm
- Height adjustment at mounting plate
- Steel / die-cast zinc nickel plated
