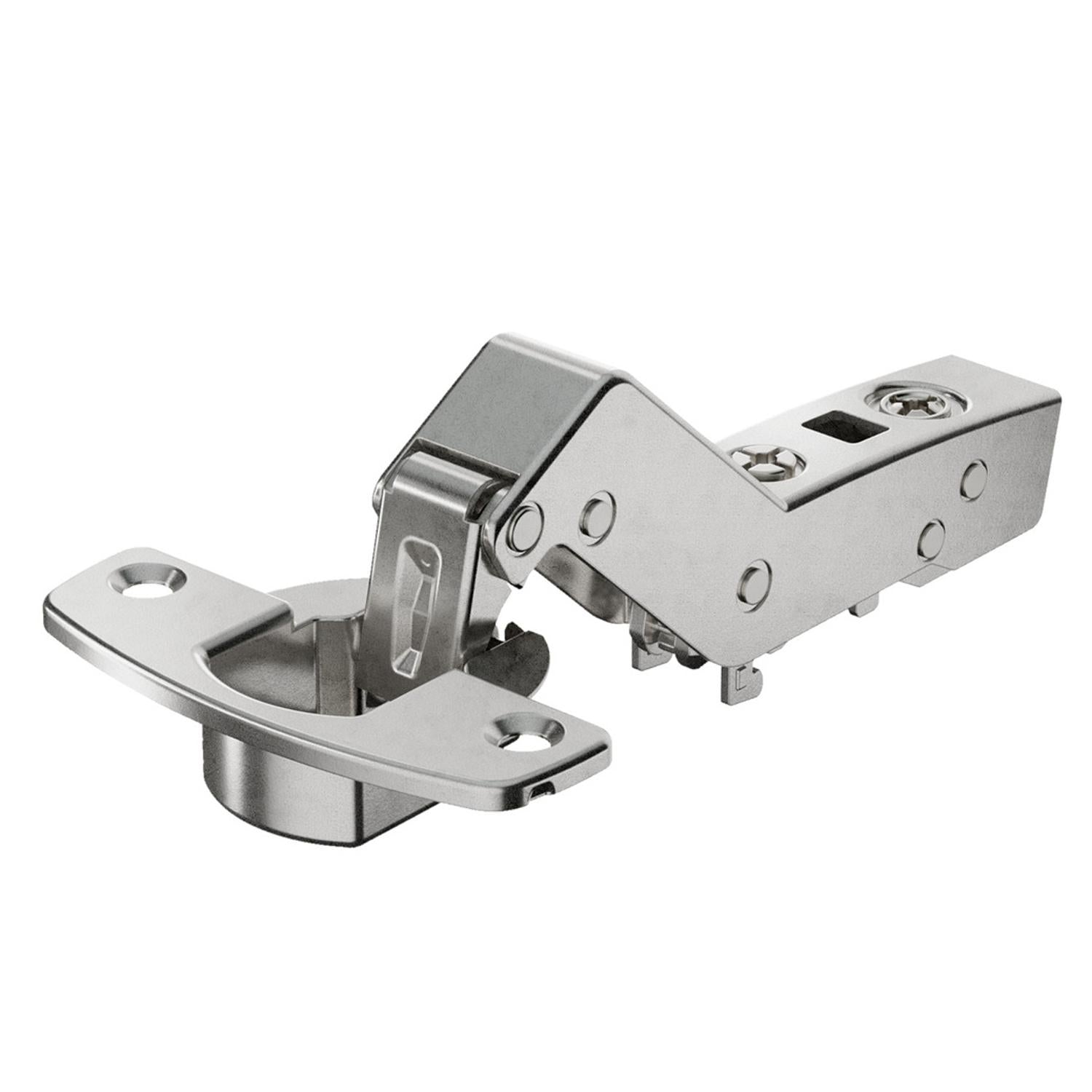

Hettich Sensys 8639i W30 Inset Corner Cabinet Hinge 95 Degree 9088017
Regular price
Dhs. 46.00
inc. VAT
Couldn't load pickup availability
Why not share this product on your favourite social networks:
Hettich Sensys angle hinge for 95 degree. Integrated silent system. Mounting plates not included.
- Sensys angle hinge W30, part number 9088017
- With integrated Silent System, with self closing feature (Sensys 8639i W30)
- Quality classification under EN 15570, Level 3
- Opening angle 95°
- For door thickness 15 - 28 mm

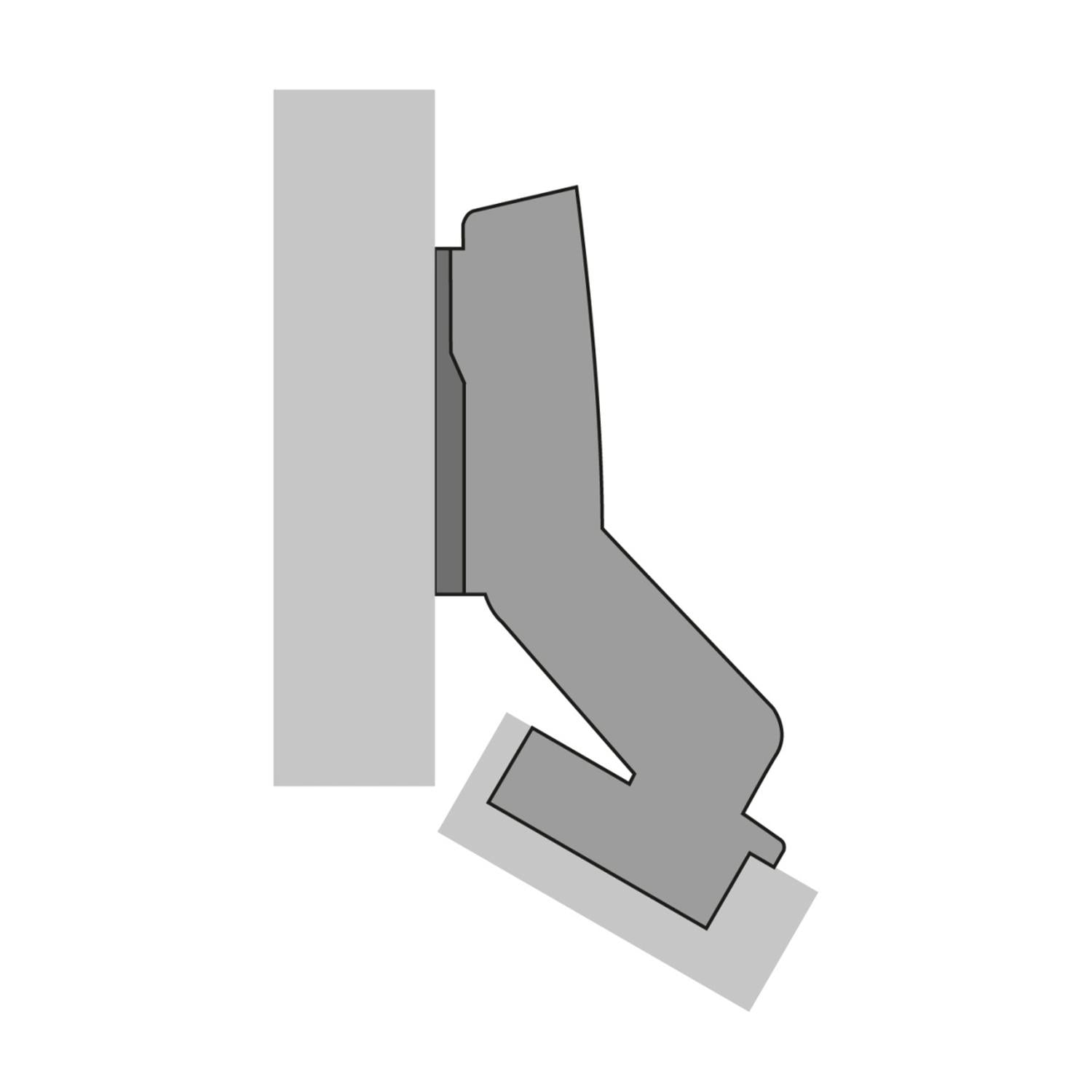

- Door mounting option inset (B -16 mm)

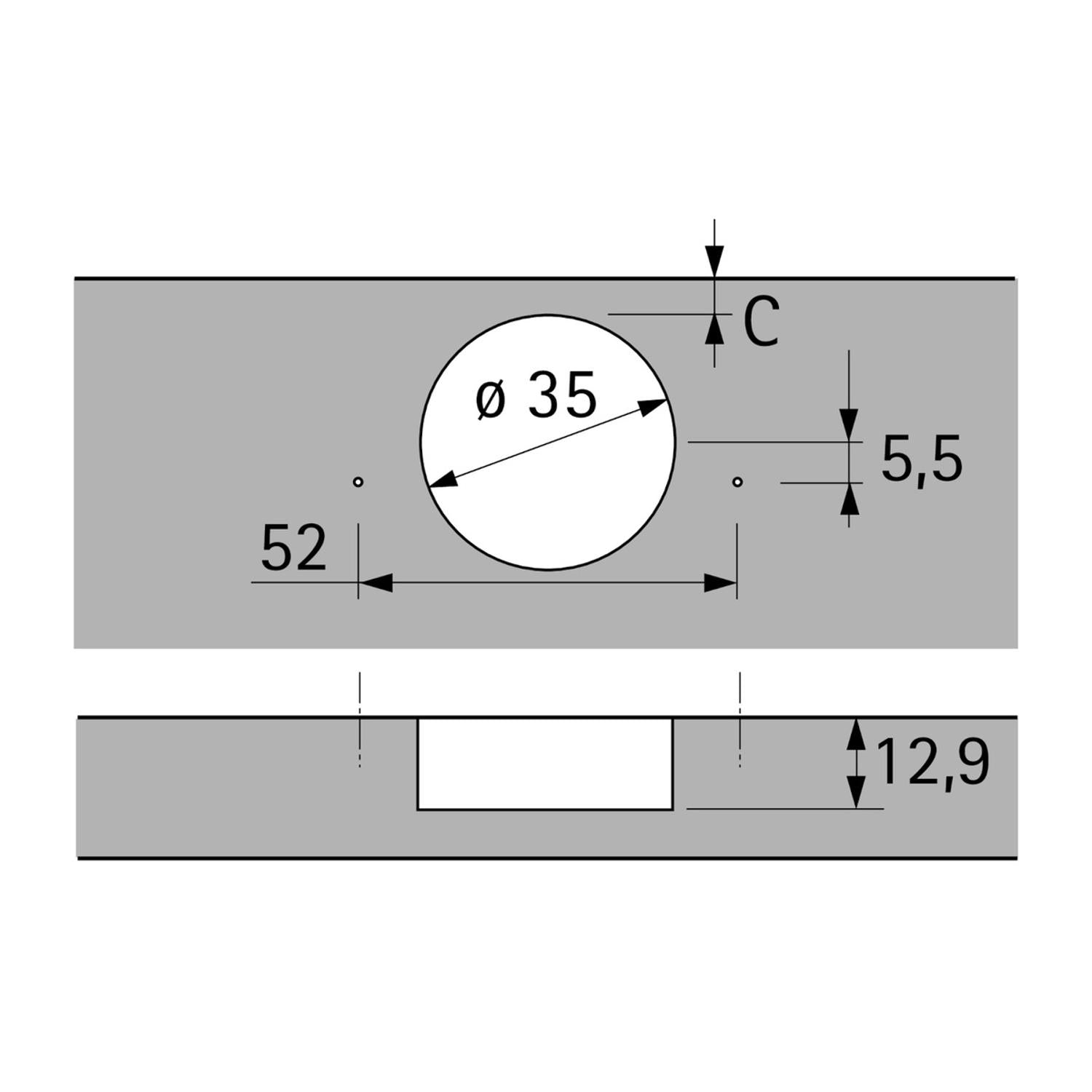

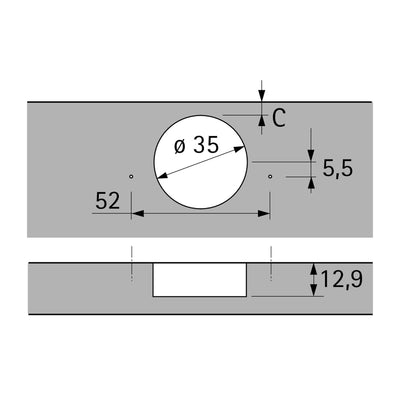

- TH-drilling pattern 52 x 5.5 mm
- Cup depth 12.8 mm

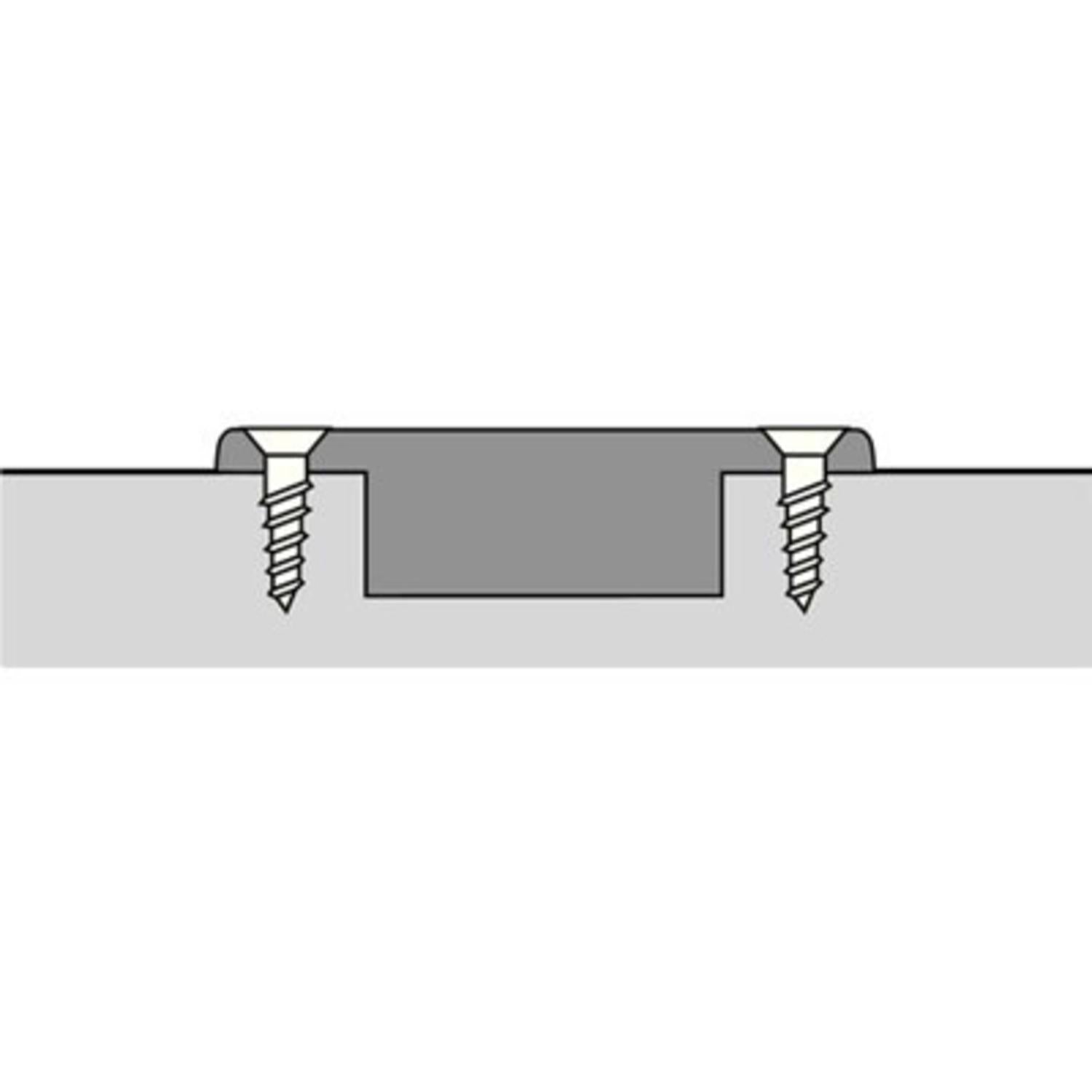

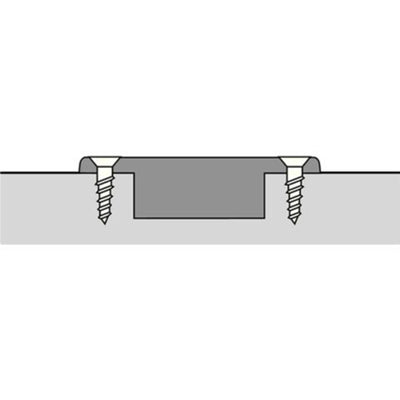

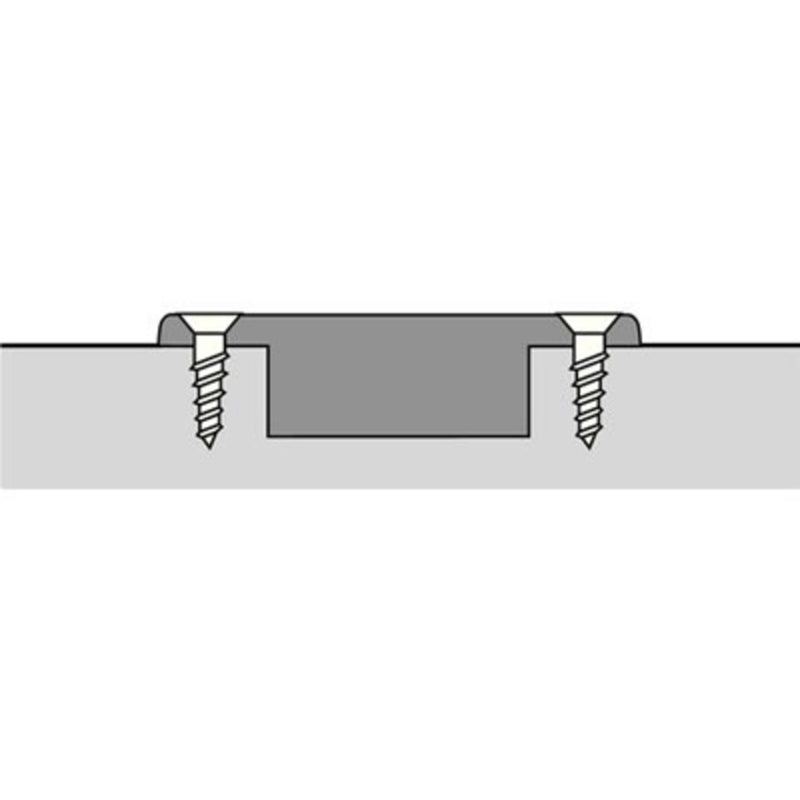

- Installation for screwing on (TH 52)
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +3 mm / -2 mm
- Height adjustment at mounting plate
- die-cast zinc, steel nickel plated
