Titus T-Type 110° Full Overlay Hinge Soft Close & Plates (2 Pack)
Regular price
£14.99
inc. VAT
Couldn't load pickup availability
Why not share this product on your favourite social networks:
Titus T-Type 110 degree full overlay premium clip on hinge with integrated soft close, plus mounting plates.

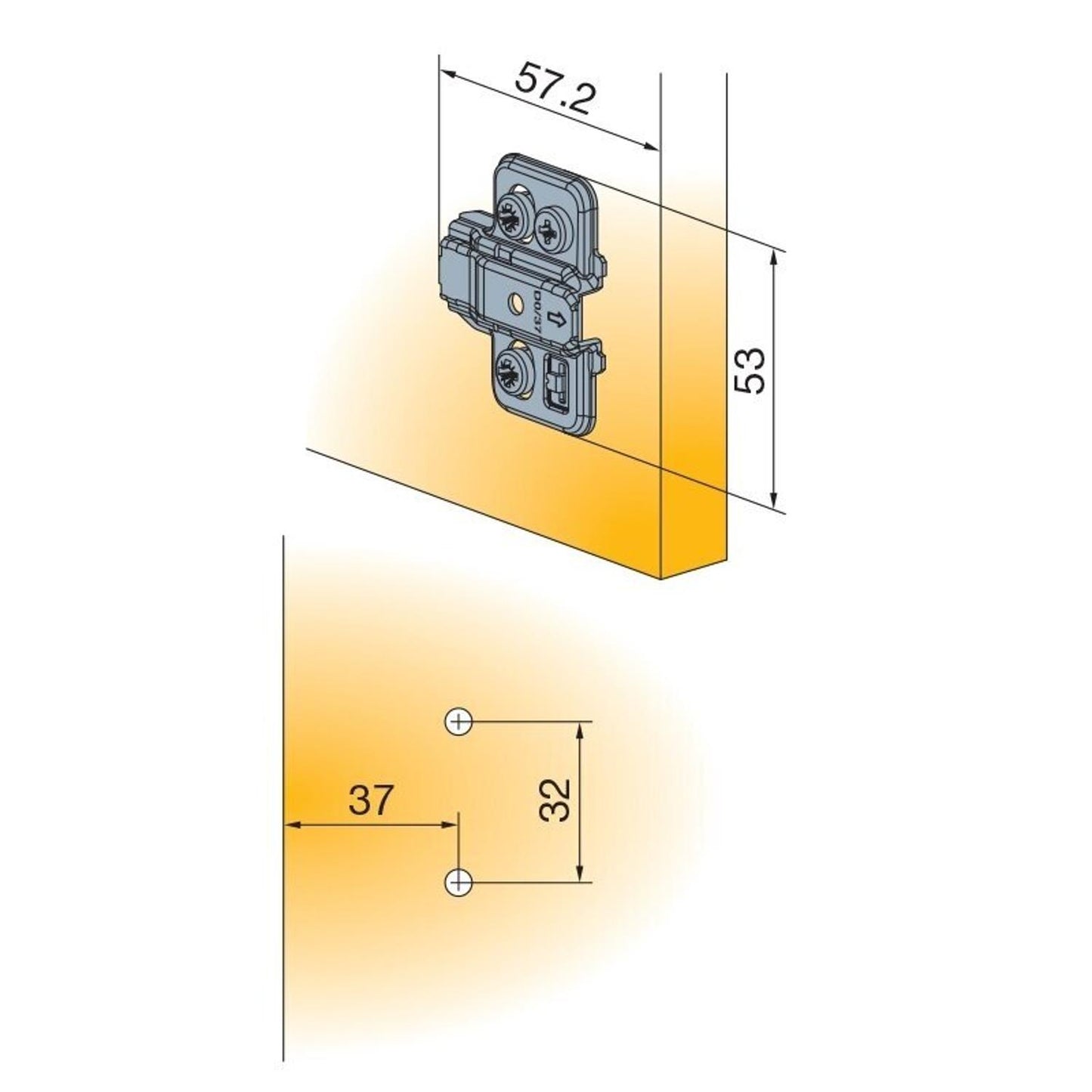

- Pack of 2 hinges and mounting plates (Hinge model 701-0AT0-054 & Mounting plate 7010-0KC0-054)
- Opening Angle: 110°
- Drilling diameter for hinge cup: 35mm
- Drilling depth: 11.7mm
- Hinge on plate mounting system: '3Way' snap-on
- Side Adjustment: +3/-1mm
- Height Adjustment: +2/-2mm
- Depth Adjustment: +4/-1mm
- Screws not included
