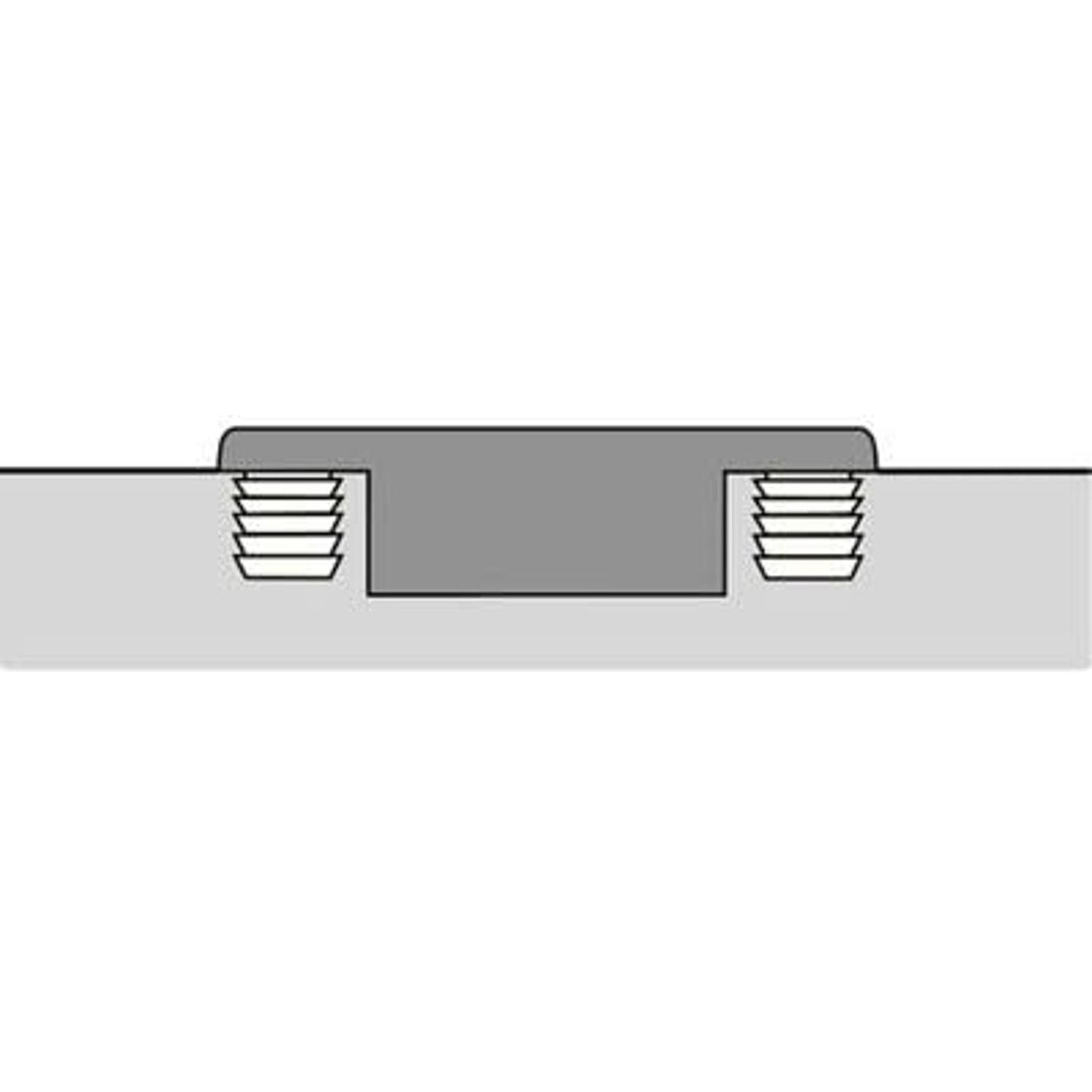

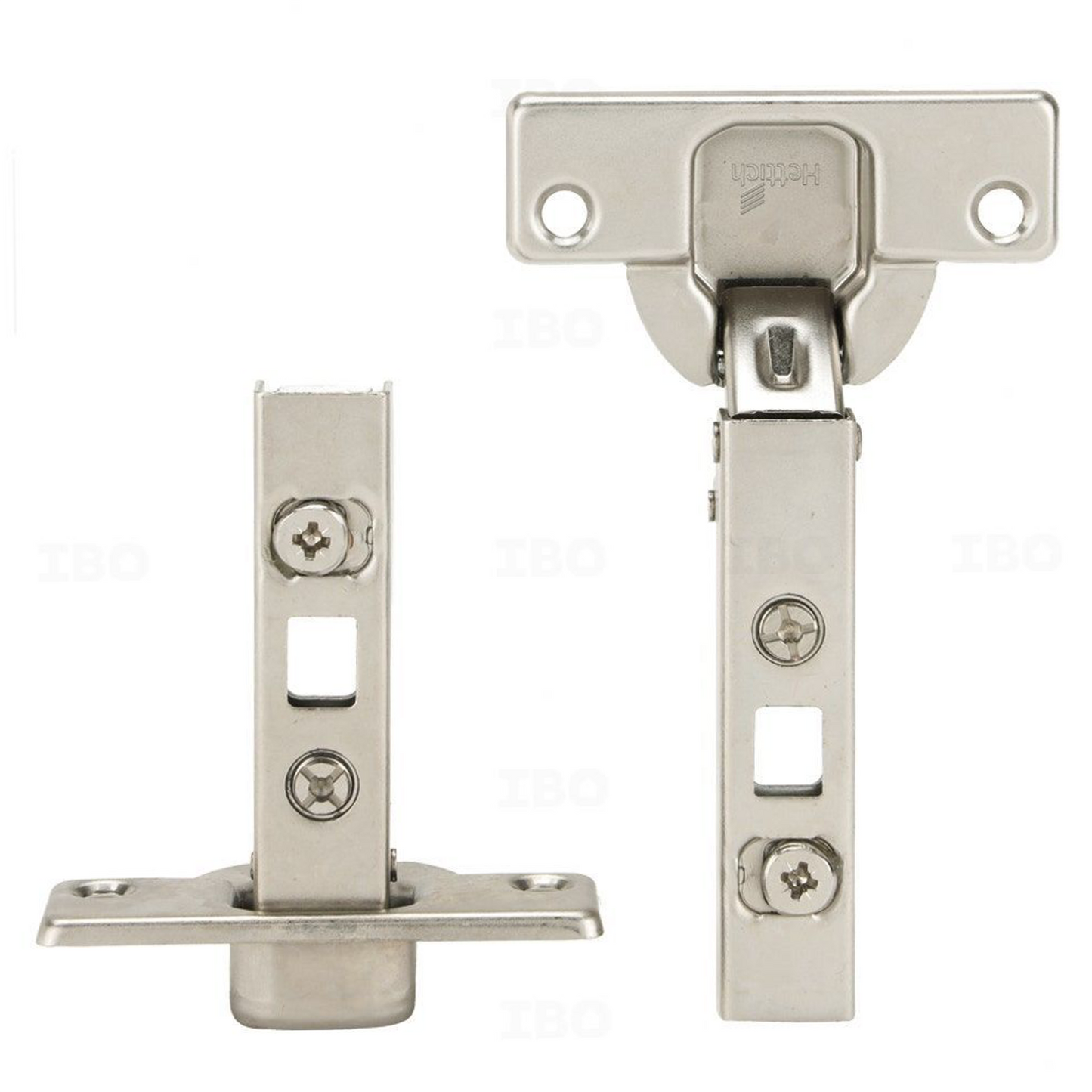

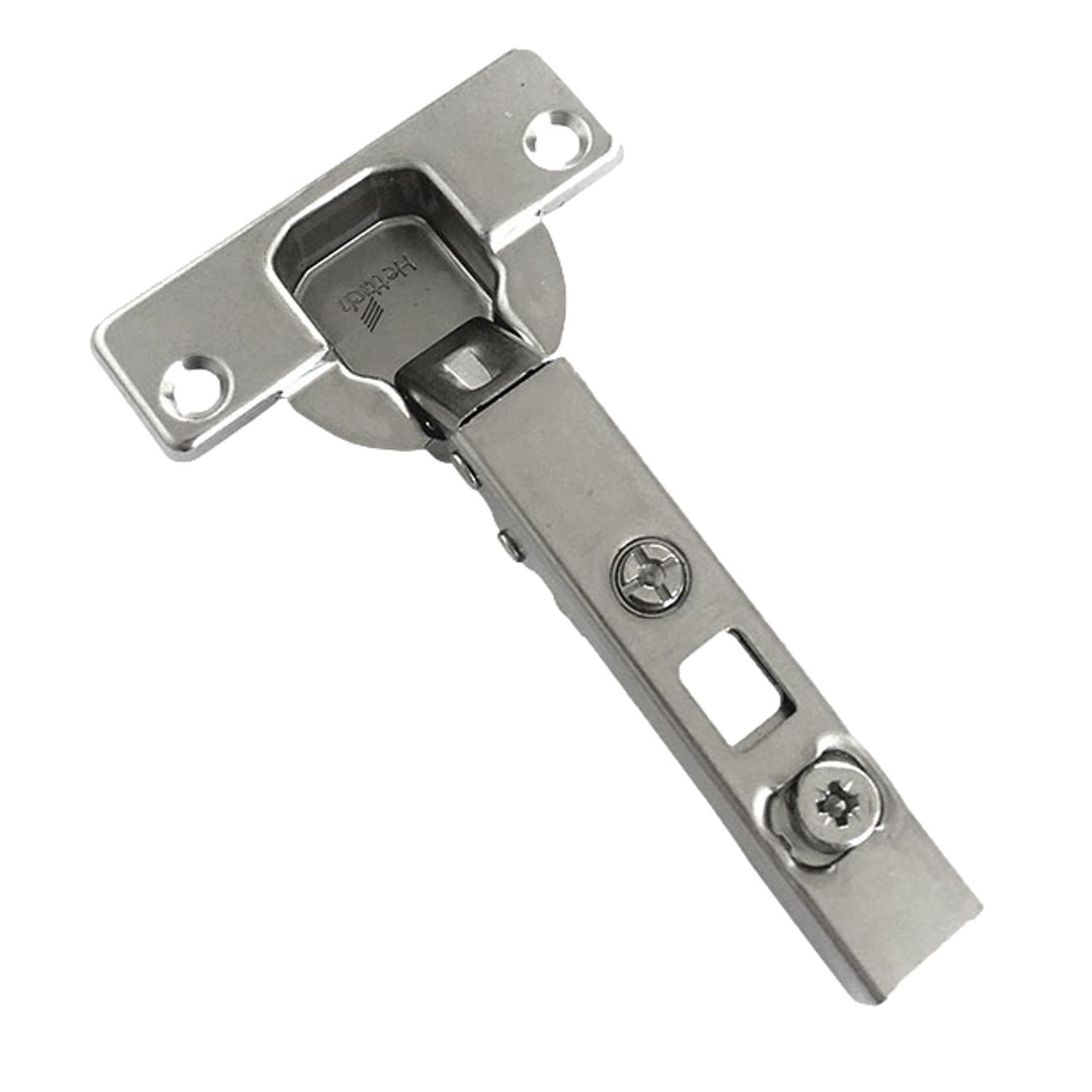

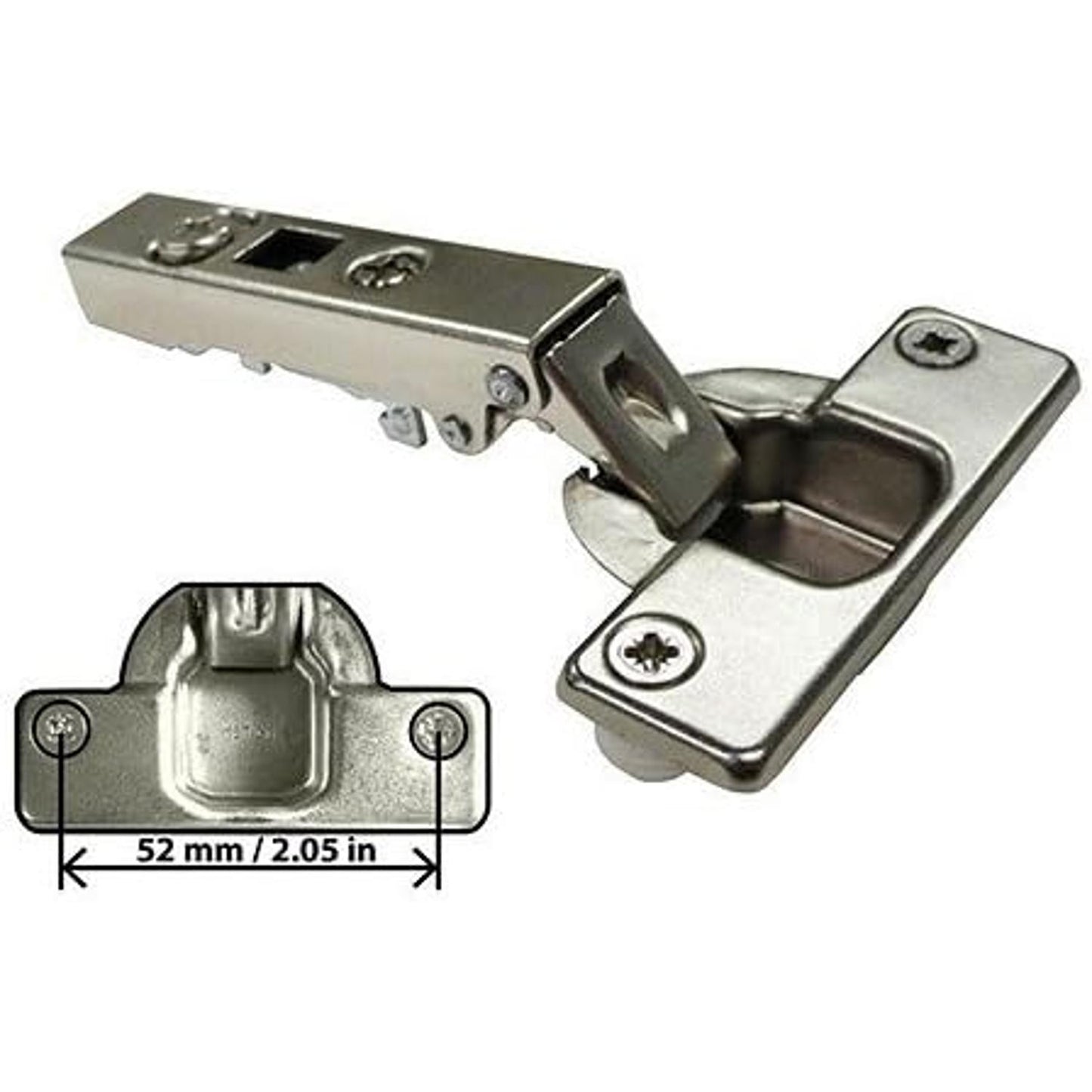

Hettich 9943 Intermat 110 degree full overlay hinge. Intermats unique spring force setting allows the closing torque to be adjusted individually. Every door, from the largest to lightest closes gently, but firmly. 35mm cup, press in version. Press in sockets can be easily unscrewed and discarded for manual screw on applications when matching the older Hettich 52 mm cup hole pattern.

• Concealed hinge with clip-on installation
• Quality classification under EN 15570, Level 3

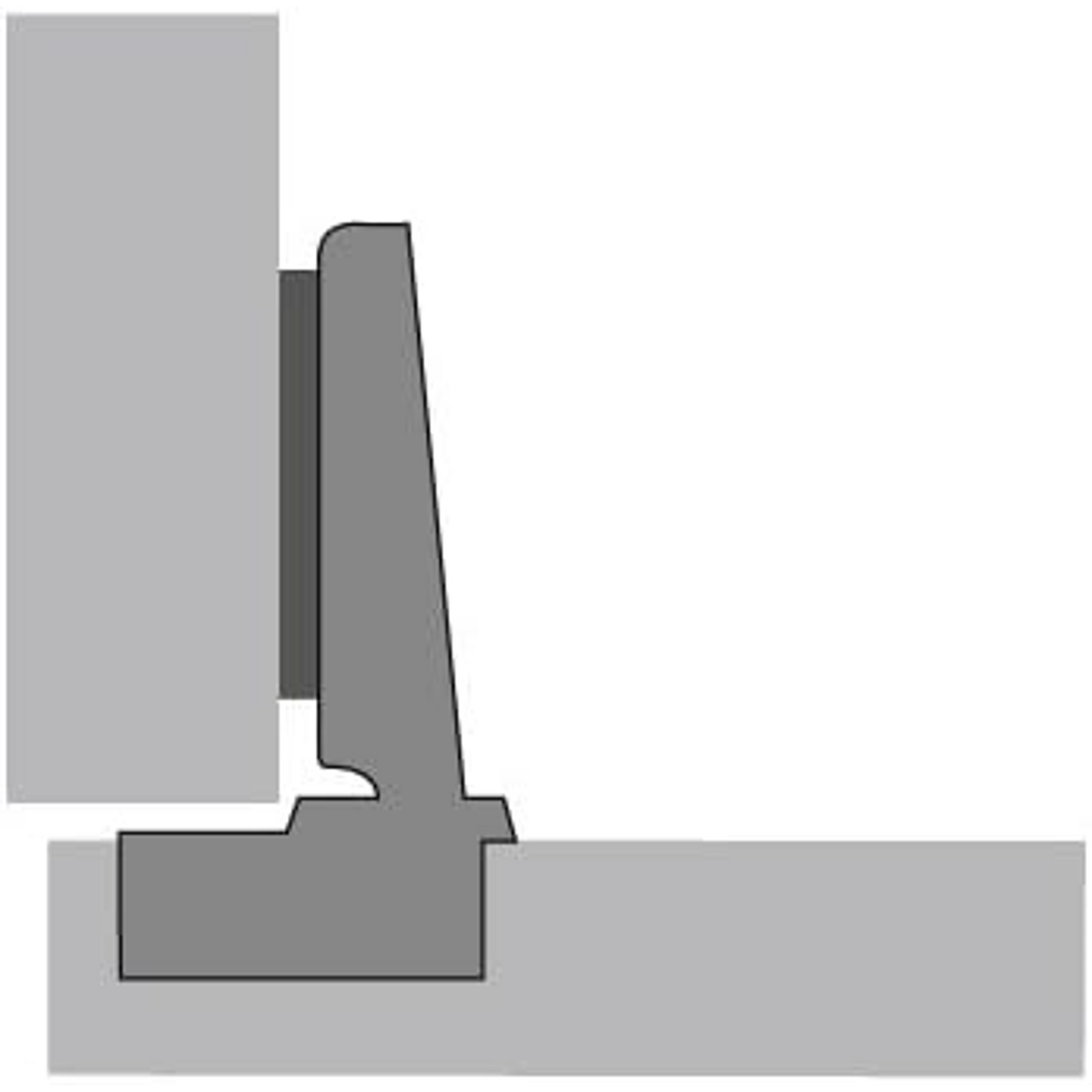

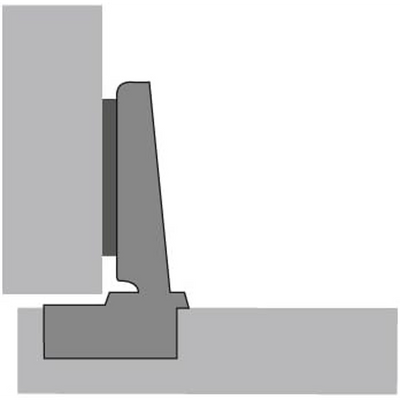

• Heavy, Strong, and Sturdy Steel Hinge; Door mounting option: Full Overlay Application
• For door thickness 15-25 mm; Cup diameter 35 mm; Cup depth 11.6 mm
• Height adjustment at mounting plate (NOT INCLUDED)
