Hettich Veosys 105° stainless steel concealed hinge for overlay wooden and framed cabinet doors. 2 pack of hinges and mounting plates.

The corrosion resistant stainless steel finish makes these ideal for outdoor kitchens etc.

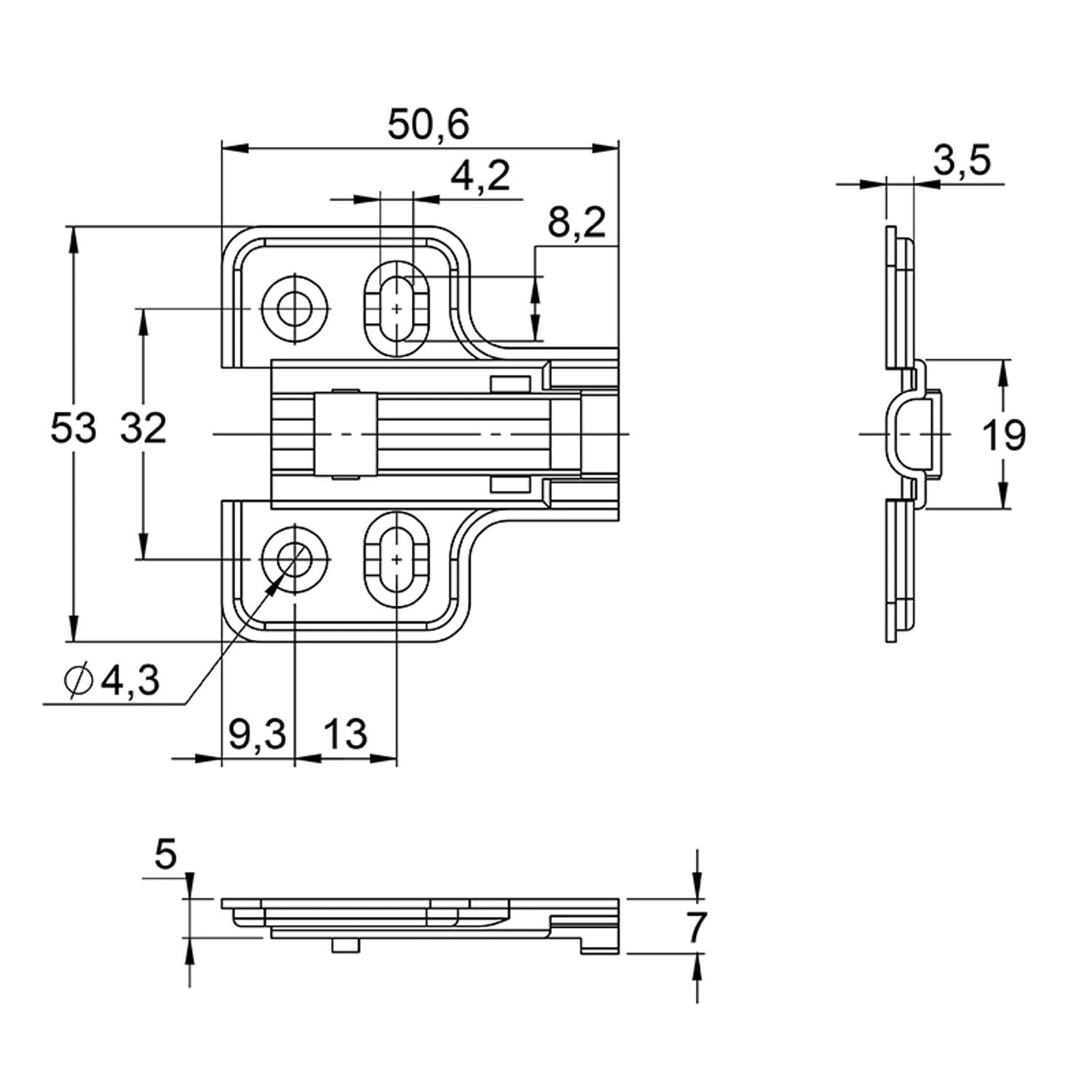

The integrated Silent System provides controlled, soft-closing action, while the clip-on design allows the hinge arm to connect quickly to a compatible Veosys mounting plate (not included).

• Corrosion-resistant stainless steel, the hinge has been tested for 120 hours under neutral salt spray conditions
• Suitable for doors from 14mm to 22mm thick
• Standard 35mm hinge cup with an 11.5mm cup depth, TH52 drilling pattern
• Adjustment ±2.5mm overlay  +2mm/-1.5mm depth, height adjustment through the mounting plate
• Article numbers 9289590 & 9289598
• Screws not included
